LED SUPPORT

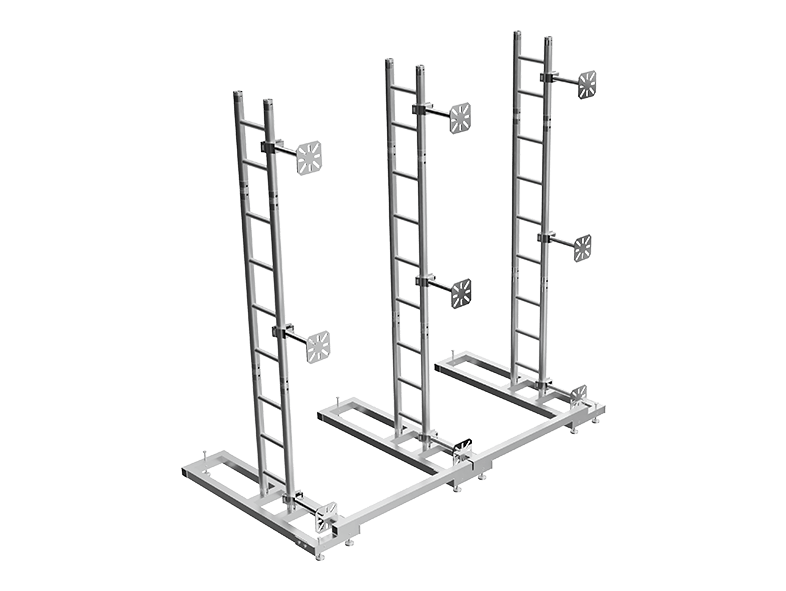

Suspend your LED screen in balanced and stable manner with our highly flexible support system. Aluminium base-unit, adjustable connection bar and ladder style trussing segments provide you a very stable support for hanging your entire LED screen board. The wall system is based on trussing line HT32 which gives it required stability as LED screens can be of larger sizes and thus imposing heavier loads on the system in total. The wall support is equipped with side-entry clamps including universal connection plate to mount different sizes of LED panels.


Specifications LED SUPPORT

Parametre
Max. výška	4 m
Base unit	50x50x3 mm  profile with  levelling feet
Ballast	2 m - 20kg,  4m - 150kg
Usage	Indoors

MAST SECTION HT32
Hlavné trúbky	50x3mm
Výplet	30x3mm
Zliatina hliníku	EN-AW 6082 T6



SEGMENTS

HT32  ladder truss 290 mm  with 30x3 mm  bracing, chords 50x3
