LED SUPPORT

https://www.truss.sk/web/image/product.template/15711/image_1920?unique=5db420f

Usage indoors. Max.height 4m

Not Available For Sale

    This combination does not exist.

    Contact Us

     We will be happy to prepare a price offer for you, click to go to the contact form.
    Or contact us by phone/email.

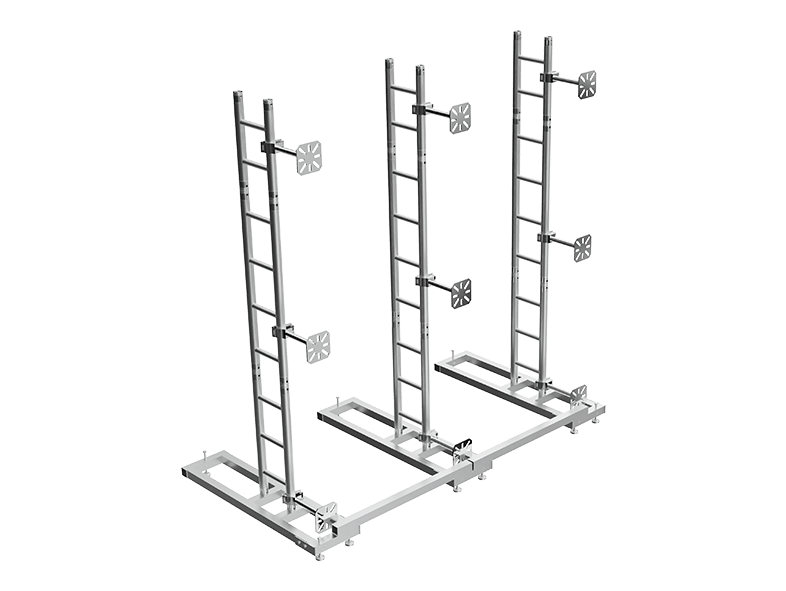

    Suspend your LED screen in balanced and stable manner with our highly flexible support system. Aluminium base-unit, adjustable connection bar and ladder style trussing segments provide you a very stable support for hanging your entire LED screen board. The wall system is based on trussing line HT32 which gives it required stability as LED screens can be of larger sizes and thus imposing heavier loads on the system in total. The wall support is equipped with side-entry clamps including universal connection plate to mount different sizes of LED panels.

    Specifications LED SUPPORT

    ​​​​SPECIFICATIONS​


    Max. height

    4 m

    Base unit

    50x50x3 mm

     profile with

    levelling feet

    Ballast

    2 m - 20kg,

     4m - 150kg

    Usage

    Indoors

    MAST SECTION HT32


    Main Tubes

    50x3mm

    Braces

    30x3mm

    Alloy

    EN-AW 6082 T6



    SEGMENTS

    HT32  ladder truss 290 mm

    with 30x3 mm

    bracing, chords 50x3
