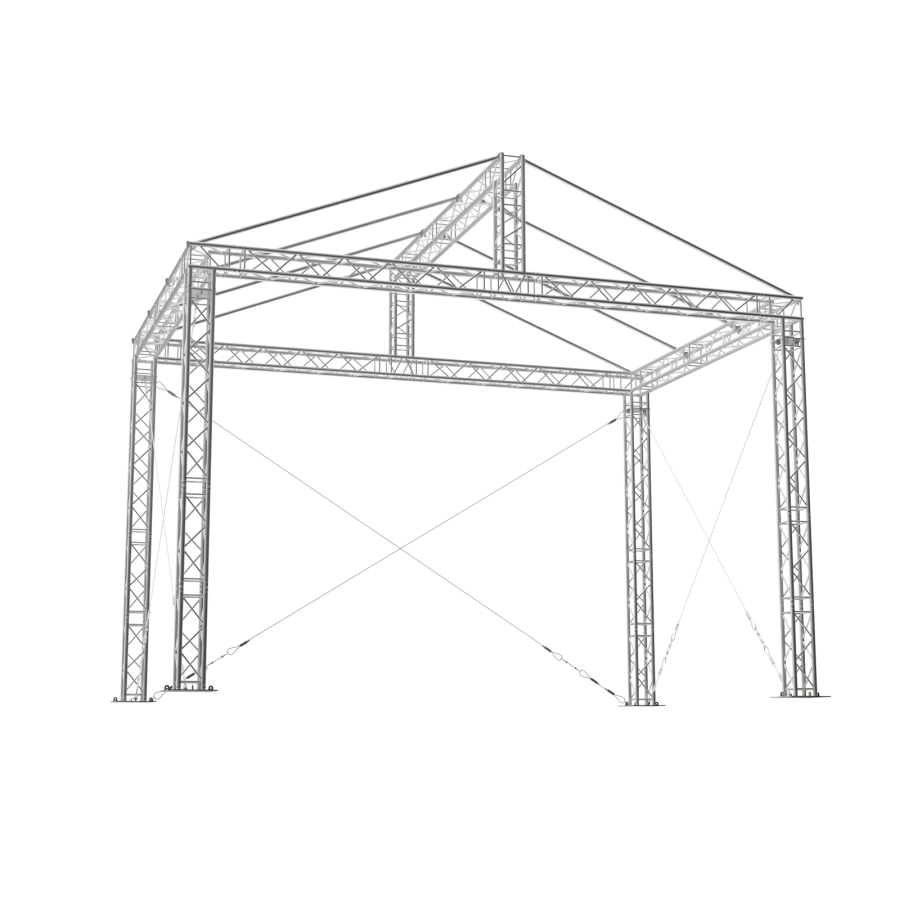

This roof can accommodate stage size of 8 x 6 m. Its clearance is 4,2m. The gable roof can be installed both with the top cover from PVC only or including the standard side canopies as well.
The top canopy support system is created by four 50 x 2 mm single tubes per side of the roof perfectly spaced 1,27 m apart form each other. These are securely hooked to the main support grid of the roof by side slim clamps 8037.
The horizontal beams are able to carry 55 kg/m, which makes the max. loading capacity of the roof 1903 kg. The operational wind limit for using the roof system with the side canopies on all three sides is 15 m/s (33 mph).
SPECIFICATIONS | |
Max. dimensions | 9x6,5 m |
Max. stage size | 8x6 m |
Max. clearance | 4,22 m |
Max. height | 6,22 m |
Max. load bearing capacity | 1903 kg |
Total weight of construction | 652 kg |
LOADING CAPACITY | |
Max.Load Bearing Capacity | 1903 kg |
Front Horizontal Beam | 55 kg/m |
Rear Horizontal Beam | 55 kg/m |
Side Horizontal Beams | 55 kg/m |
DOWNLOAD
ROOF DIMENSIONS | | |
Stage size | 8000x6000 mm | |
Inside width | A | 8420 mm |
Overall width | B | 9000 mm |
Inside depth | C | 5920 mm |
Owerall depth | D | 6500 mm |
Clearance | E | 4220 mm |
Height | F | 6220 mm |
Used Truss
FT34 truss line standard products are mainly used for assembly of RST roofs. It is a box truss with 290 x 290 mm (12 in x 12 in) outside dimensions, main pipe Ø 50 x 2 mm (2 in x 0.08 in), braces Ø 20 x 2 mm (0.8 in x 0.08 in). The alloy used as material for the pipes is EN AW-6082 T6.
Wind Management
Wind resistence is calculated with 3 side mesh canopies applied to the structure (2 side canopies and one rear canopy). The three roof walls carrying canopies must be secured by guy wire cross bracing at all times with min. loading capacity 1000 kg (2205 lb).
In service max. windspeed - 15 m/s - 54 km/h - 33 mph
Out of service max. windspeed - 28 m/s - 101 km/h - 62 mph
Ballast
Option 1 - 800 kg / 1764 lb ballast underneath each tower base = total of 3200 kg / 7055 lb
Option 2 - 800 kg / 1764 lb ballasts in the 3.5 m (11.5 ft) range from each tower leg attached to the structure by guy wires following the layout in static calculation.
Canopy and Side Walls
Top canopy is available standardly in silver grey and black color. The material used is SIO-LINE B 8000 with weight of 630 g/m2.
The side walls are covered by air permeable mesh canopies in black.
Transportation Data
Total weight: ca. 700 kg (1543 lb)
Transport volume: ca. 7 m3 / 247 cu ft (max. length 2.5 m / 8.2 ft)
All truss segments are packed in brown carton boxes for better handling and protection during transport.
