Tower 1

https://www.tomkostage.com/web/image/product.template/15700/image_1920?unique=1aa3b37

Max lifting up to 7,5m , loading capacity is 1000kg

Not Available For Sale

  • Hight
  • Load capacity

This combination does not exist.

Hight: 7,5 m
Load capacity: 1 T

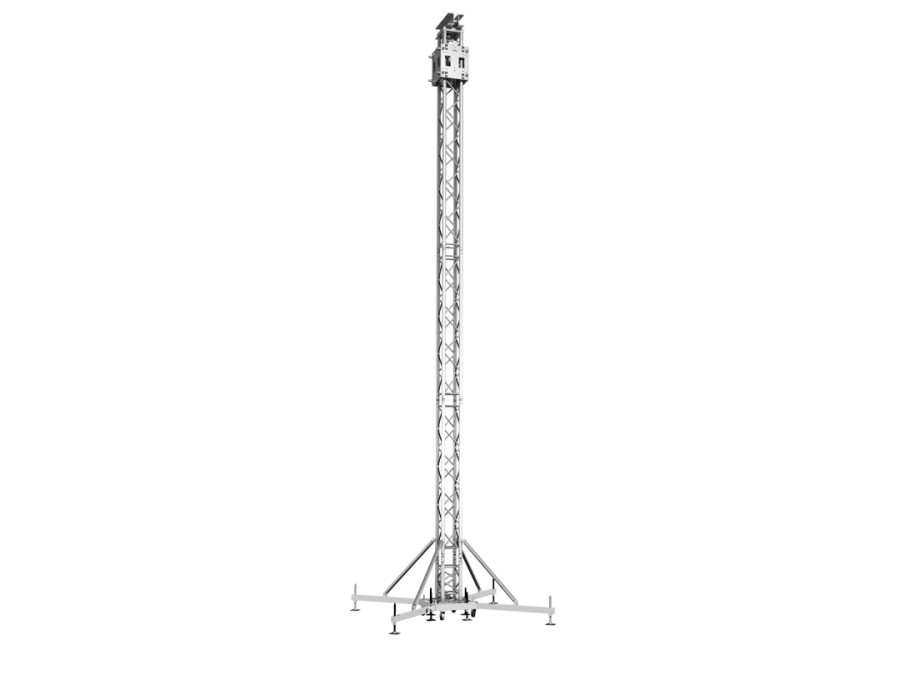

Tower 1 is made from quick-lock line segmenup to 7.5m (24.6ft) and it can go . Its loading capacity is 1000kg. This tower system is very useful in roof designs and big LED screens set ups. The tower can be equipped either by a hand winch, a manual chain hoist or a rigging motor.

Specifications TOWER 1

​​​​SPECIFICATIONS


Self weight

120kg

Height

7,5 m

Load capacity

1000kg

MAST SECTION TT34


Main Tubes

50x4mm

Braces

20x2mm

Alloy

EN-AW 6082 T6

DOWNLOAD


 TAF TOWER 1

PART LIST



TT BP 1 pcs

TT SB 1 pcs

TT HS 4 pcs

TT TS 1 pcs

TT LO 4 pcs

TT34-50 1 pcs

TT34-200 2 pcs

TT34-300 1 pcs

TT SH 1 pcs

Transportation Data

Total weight: 120 kg
