LED FRAME 2

https://www.truss.sk/web/image/product.template/15709/image_1920?unique=5db420f

6x4m with maximum weight of 2000 kg

Not Available For Sale

    This combination does not exist.

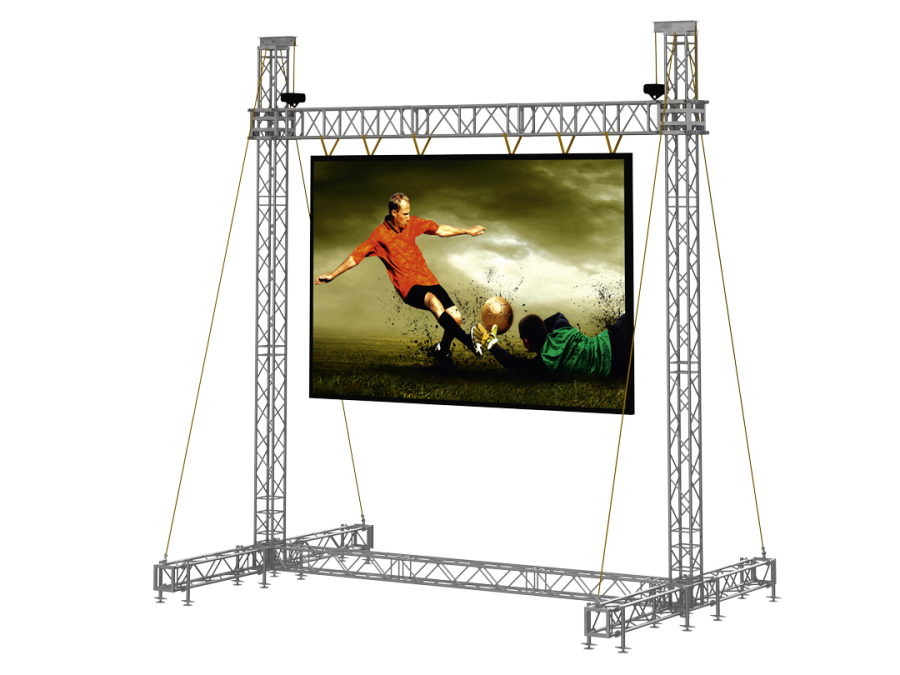

    This type of LED screen truss frame is fit for LED screen sizes up to 6x4m (19,7 x 13,1ft). Thanks to the application of larger truss segments, the structure itself can carry screen with max. weight of 2000kg (4410 lb). The maximum height level of the horizontal truss beam from TT54 is 9m (29,5 ft), which means that the screen itself can be visible from great distance without any issues. The vertical towers are basically Tower 2 sets from our portfolio and the FT44 trusses are used to create the base of the complete structure on the ground.

    Specifications LED FRAME 2

    ​​​​SPECIFICATIONS


    Max. dimension

    8,25 x 5,72 m

    Max. Led size

    6x4 m

    Max. height

    9 m

    Max. load capacity

    2000 kg

    Total weight of construction

    850kg

    MAST SECTION TT54


    Main Tubes

    50x4mm

    Braces

    30x3mm

    Alloy

    EN-AW 6082 T6



    PART LIST


    Tower 2

    TT54

    TT44

    FT44
